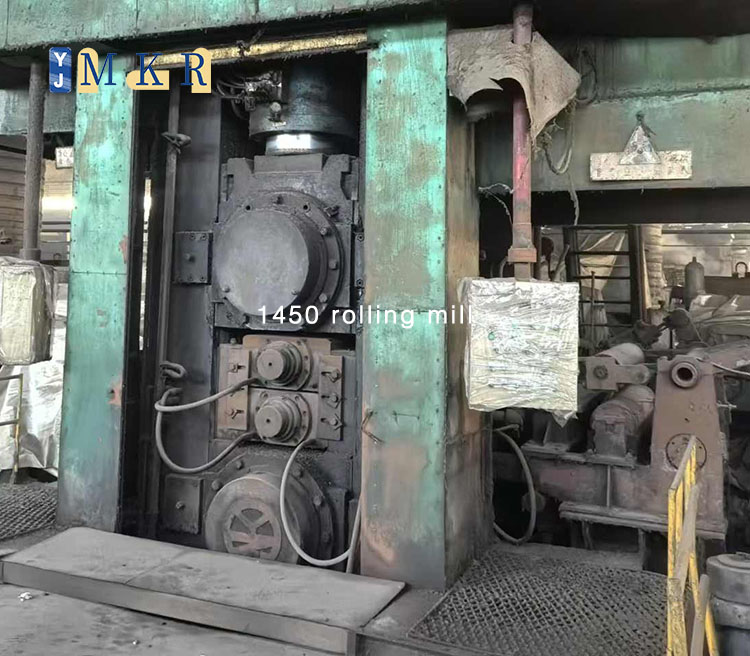

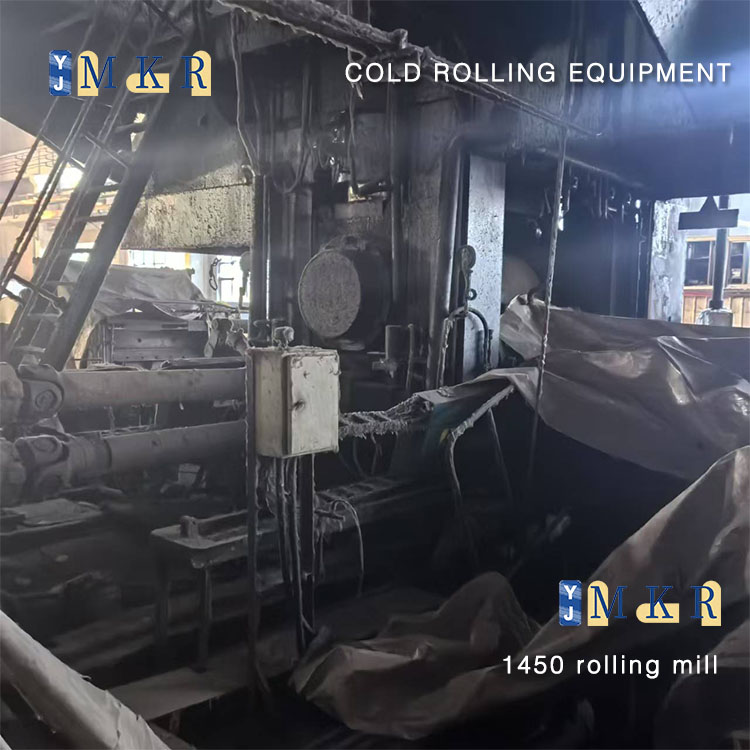

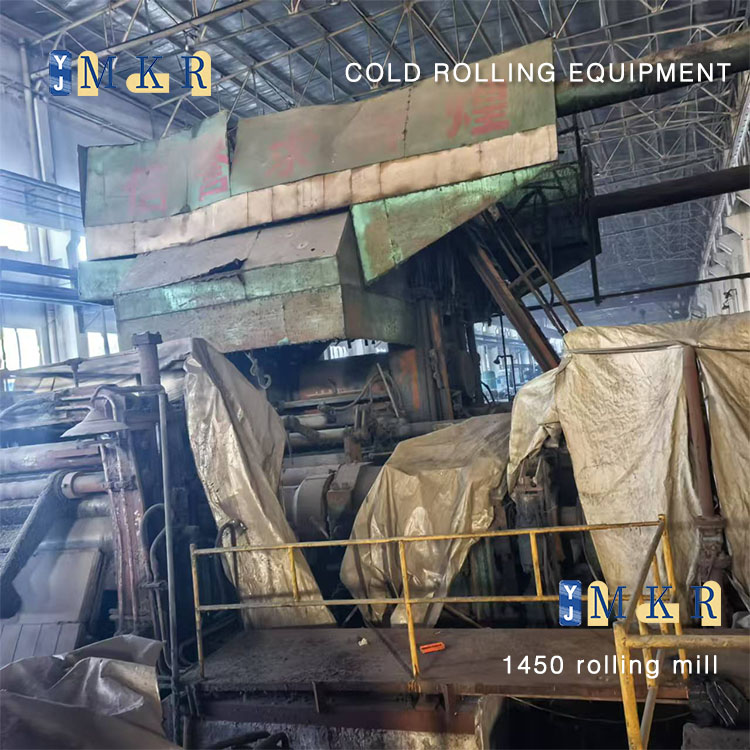

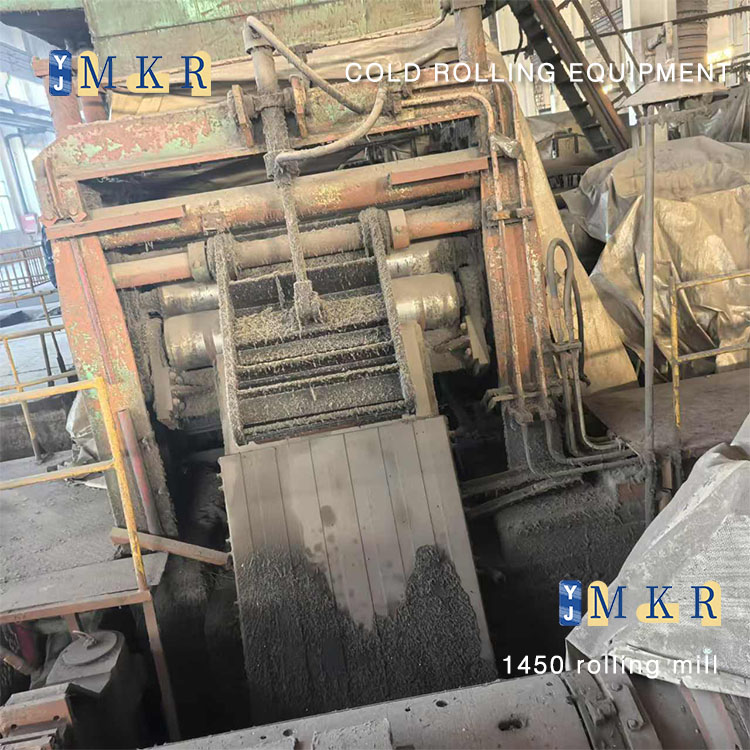

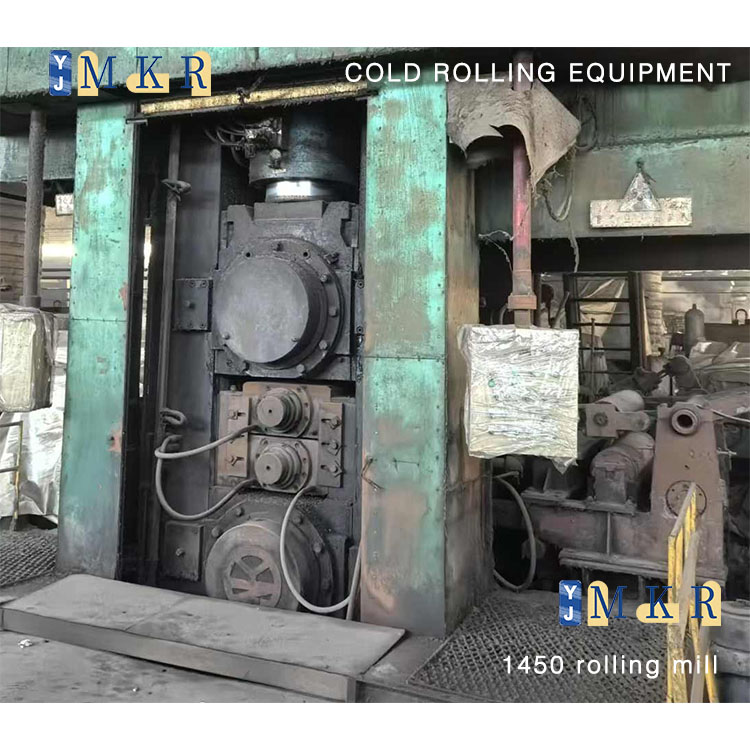

1450 mill main technical parameters

1. Rolling mill main motor: rated power: 1250KW

Rated voltage: 750V Rated current: 1768 A

Rotation speed: 700 ~ 1200 r·p·m

2. Maximum working torque of gear base: 80 KN·m 3. Maximum rolling force: 9000 KN

4. Feed speed: 30 m/min, basic speed: 180 m/min

Maximum speed: 300 m/min

5. Maximum opening of work roller: 60 mm

6. Roller:

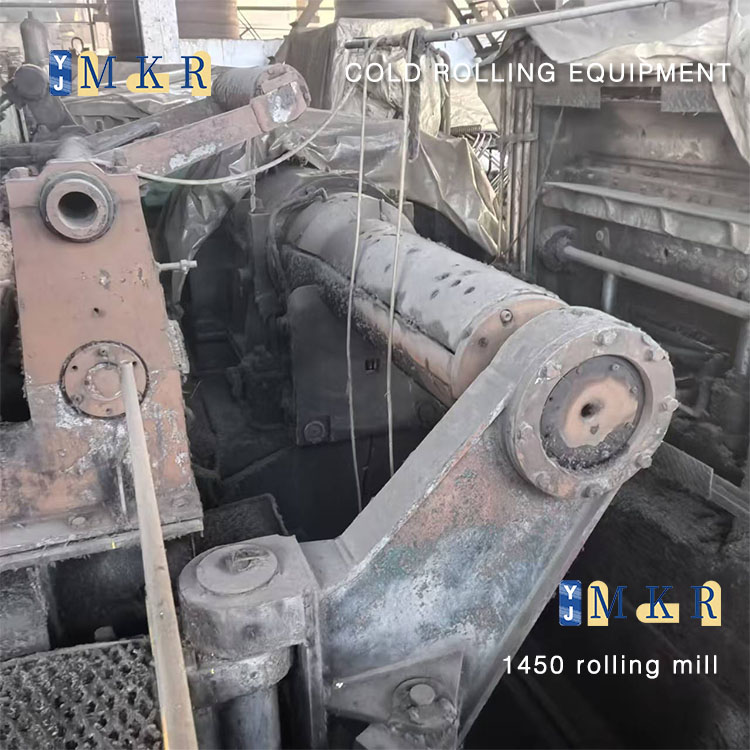

7. Uncoiler

7.1 Motor power: 166 KW, rated voltage: 400 V,

Rated current: 470 A, rotation speed: 675 ~ 1900 r·p·m

7.2 Inner diameter of uncoiler expansion range:    470 ~ 520mm

7.3 Uncoiling tension :4 ~ 40KN

7.4 Maximum Uncoiling speed: 180 m/min

8. left and right coiler:

8.1 Motor power: 400 KW; Rated current: 668 A;

Rated voltage: 600 V  Rotation speed: 500 ~ 1600 r·p·m

8.2 Inner diameter of coiler expansion range:     495 ~ 510 mm

8.3 Winding tension: 10 ~ 100KN

8.4 Maximum coiling speed: 300 m/min

9. Motor power of hydraulic station: 37KW*2
