Details

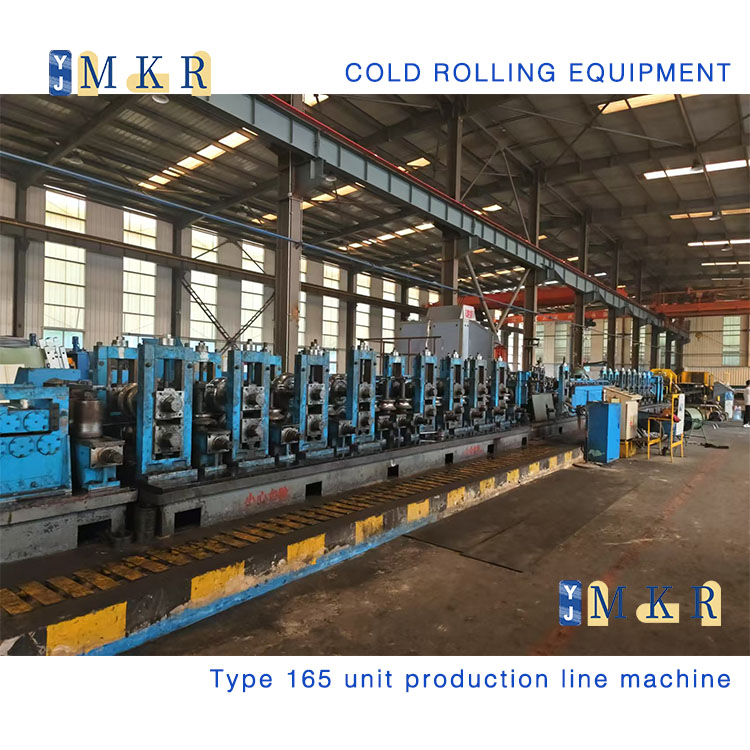

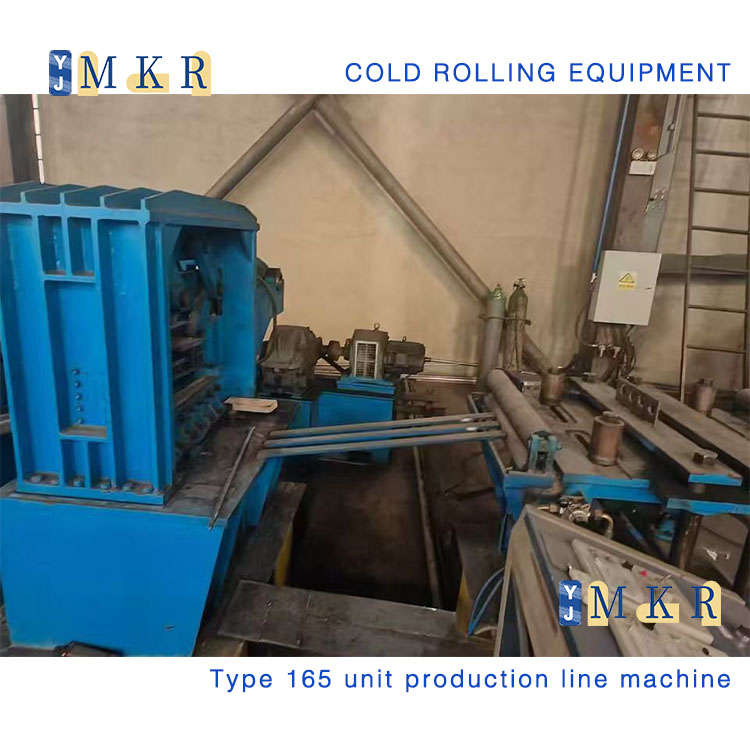

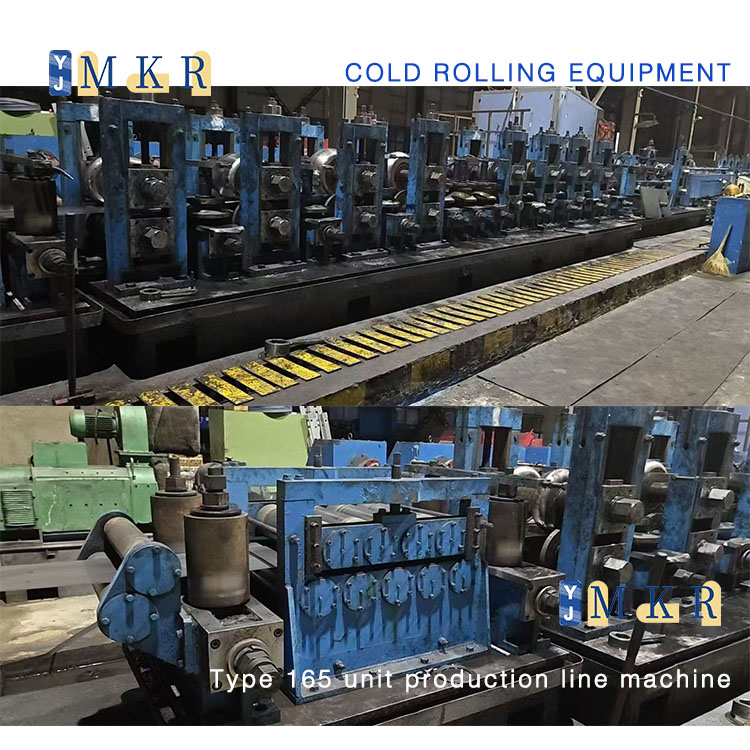

165 unit production line machine list
1.Shear and butt welding
Hydraulic shear, width: 500
2.Welding platform
Cylinder pressed down, width 500

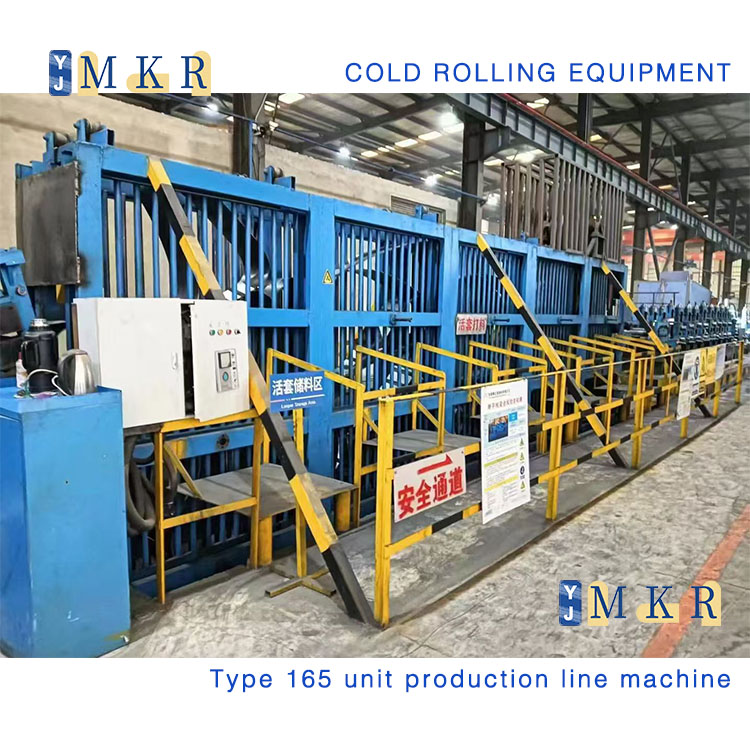

3.cage-type looper
10 meters long and 4 meters high

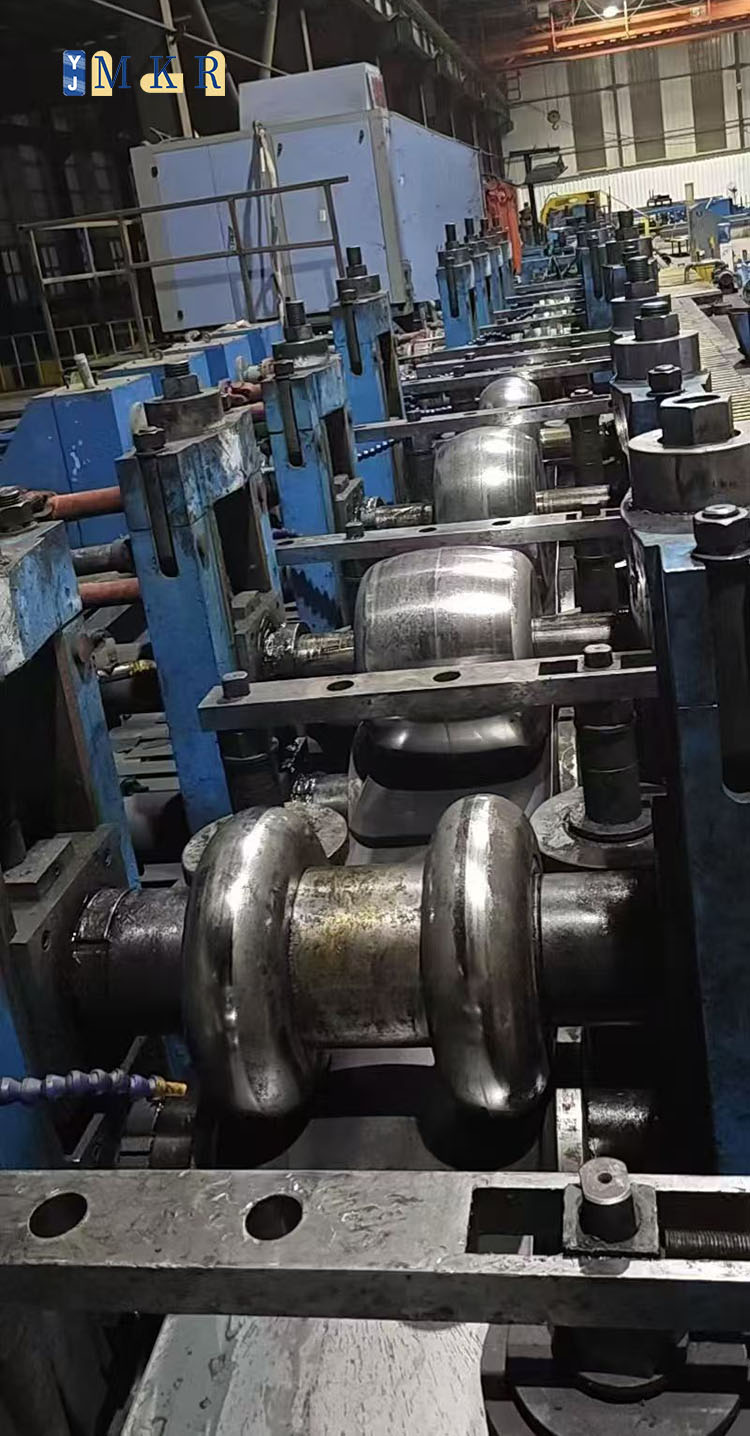

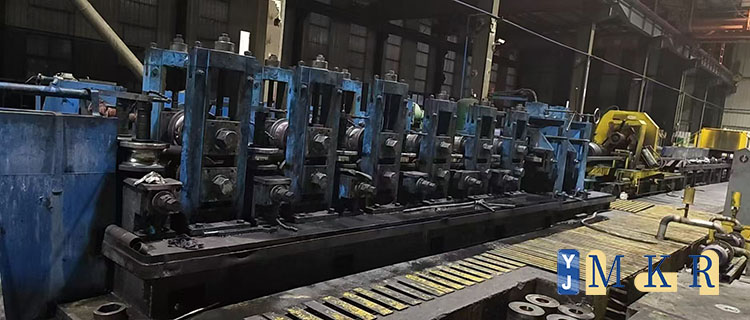

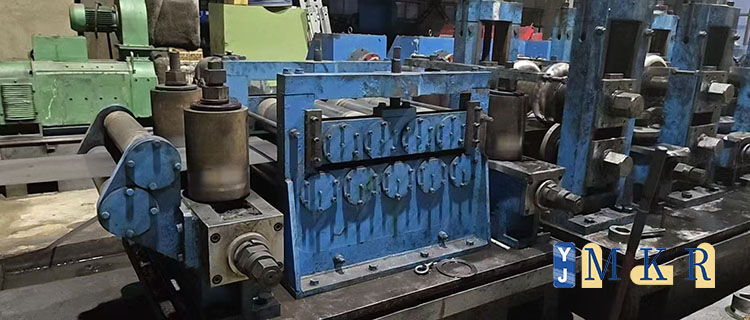

4.Molding sizing machine (round to square process)
Molding: 8sets, sizing:6 sets
The flat shaft is 120mm and the vertical shaft is 70mm
Double drive motor 200KW/200KW

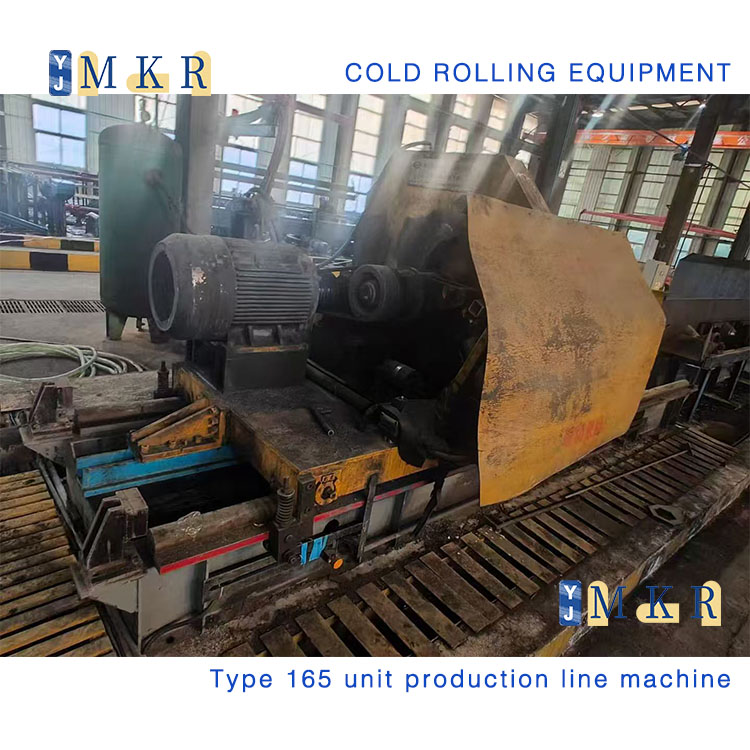

5.Computer controlled saw
Drive motor 37KW, sawing motor 45KW
Pneumatic sawing, can cut the range of 165 circles, 120 square, the computer has changed to Heideman, electric control are all refurbished.
6.High frequency
Baoding Zhaoyu 400 high frequency, all renovated.
7.Unloading roller table
21m unloading roller with belt drive
8.Mold model number
Round tube:88/113/125/140/150/165
Square Tube:
50* 100/40 * 80/100 *100/60 *60/80 *140/80 *120/120 *120/80 *80/60 *120
Weight including Mold frame is 65 tons.
