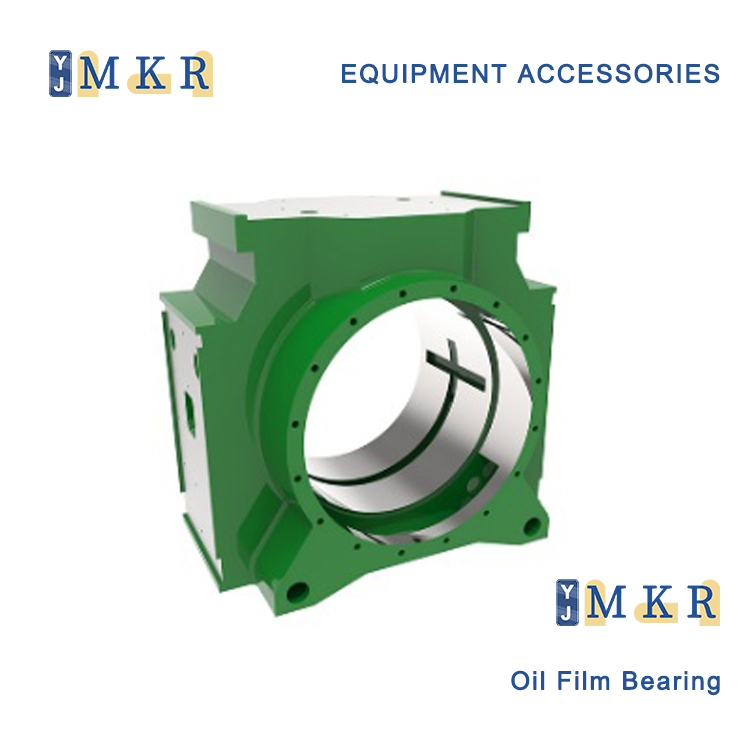

Oil film bearing: It is a kind of radial sliding bearing with lubricating oil as lubricating medium, also known as oil film bearing. The main components by the bearing pedestal, bushing and taper sleeve (including taper sleeve ring and other parts). Bearing pedestal is customarily called support roller bearing housing, also known as oil film bearing pedestal.

Reproducing process:

ABB robot surfacing process: It adopts ABB robot and equipped with EWM intelligent arc welding machine for surfacing.The melting depth is shallow and uniform, and a single layer of surfacing can be welded. It is not easy to have slag and other defects, and its surface quality is excellent.

Supersonic flame spraying process: supersonic flame spraying is the use of propane, propene and other hydrocarbon gas or hydrogen and high-pressure oxygen in the combustion chamber, or in the special nozzle combustion of high temperature, high-speed combustion flame flow. The combustion flame speed can be up to Mach 5 (1500m/s) or more, usually called HVOF. Then the alloy powder is fed axially into the flame, which can heat the coated particles to a molten or semi-molten state and accelerate them to speeds as high as 300-500m/s, or even higher. This results in a high quality coating with high bonding strength and denseness.
