Through the expansion and contraction cylinder, the wedge-shaped shaft makes axial reciprocating movement, and the plunger on the wedge-shaped shaft makes radial direction movement. Thus realizing the expansion of the sector plate. The T-shaped hook on the wedge-shaped shaft pulls the expansion and contraction plunger inward, and the hook on the outside of the expansion and contraction plunger pulls back the fan-shaped plate, thus realizing the reduction of the reel. There is a water cooling channel inside the reel for better cooling effect.

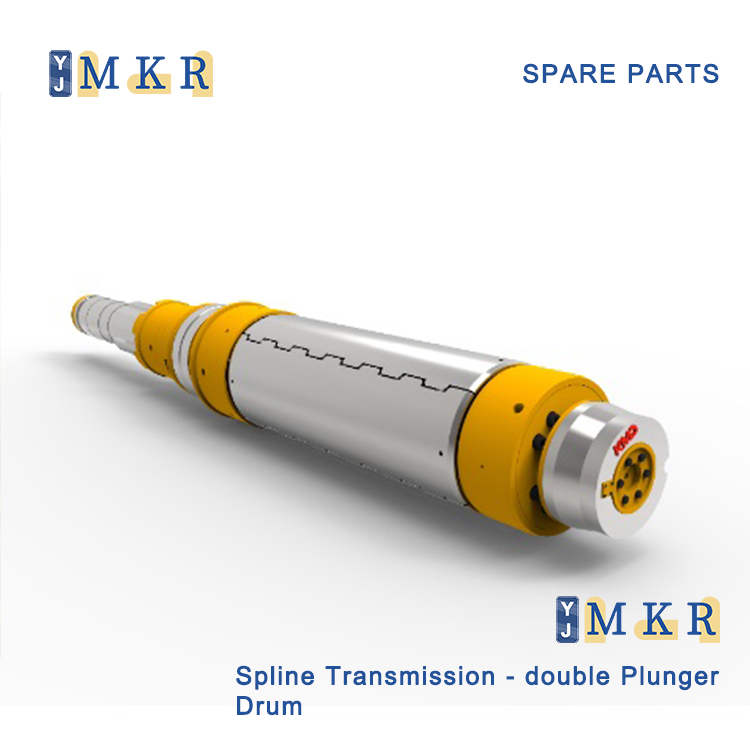

The Spline Drive-Double Plunger Reel is advanced machine for metal plates processing. It adopts spline transmission system and double plunger design, which can realize efficient and stable winding and tensioning functions. The equipment is suitable for the production of metal plates of various specifications and materials, featuring high precision and easy operation. It is widely used in iron and steel, metallurgy and other industries.

The compact design of the spline drive-double plunger type winder enables high-speed and high-precision winding operation, which improves production efficiency and product quality. Its double plunger design can effectively control the tensioning force of the reel to ensure the stability and flatness of the sheet metal during processing. Meanwhile, the advanced spline transmission system can precisely control the speed and tension of the reel to meet different processing requirements.

The machine adopts advanced automatic control system, which is easy to operate and can realize quick adjustment and precise control. Its efficient and stable working performance makes it an indispensable and important equipment in the metal processing industry. The wide application of Spline drive-double Plunger Reel provides important support for the development and progress of the metal processing industry.
