Process conditions and main technical parameters of the equipment

Processing procedures description

It is mainly used for rolling the copper strip after rough rolling and annealing. After many passes, it is rolled into strips of 0.05~1.0mm.

Main technical conditions of the product

1.2.1 rolled strip steel grade ：C10200 、 C11000 、 C26000 、 C26800 、 C27000 、C19210、C19400 、C51900、C52100、C70250

1.2.2 material specification

1） thickness(max) ：1.0 mm

2） width of strip billet：400~650 mm

3） inner diameter of strip coil：Φ610 mm

4） outer diameter of strip coil ：maximum:Φ1700 mm (including liner paper)

5） thickness deviation:

Vertical direction：±1.5%

Horizontal direction：±1%

Maximum weight of strip coil：11000 kg (not including the weight of sleeve)

1.2.3 Product specifications

(1) Thickness of finished products: 0.1 mm,  Copper products: 0.08mm

(2) Product width: 400~650 mm

3) Thickness accuracy:

0.5≤t＜1.0 ±0.004 mm

0.3≤t＜0.5 ±0.003 mm

0.1≤t＜0.3 ±0.002 mm

4） Inner diameter of strip roll ：Φ610 mm （without sleeve）

5） Plate shape (straightness) : ≤15 I  in-line plate shape

6） Misalignment of the ends ： ≤±0.5 mm

7） Tower-shaped of the ends ： ≤±1.0 mm

8） Outer diameter of strip coil：Max：Φ1700 mm （including liner paper）

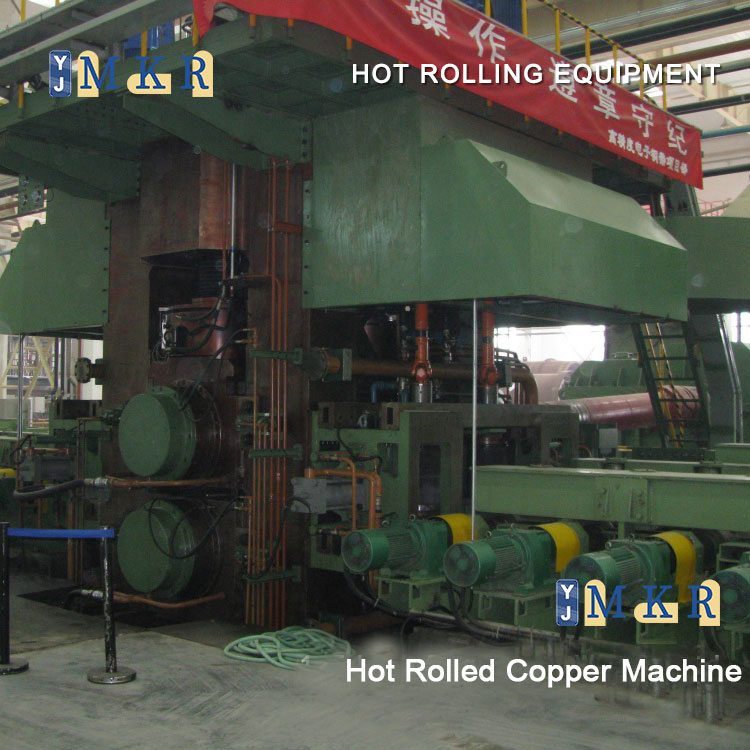

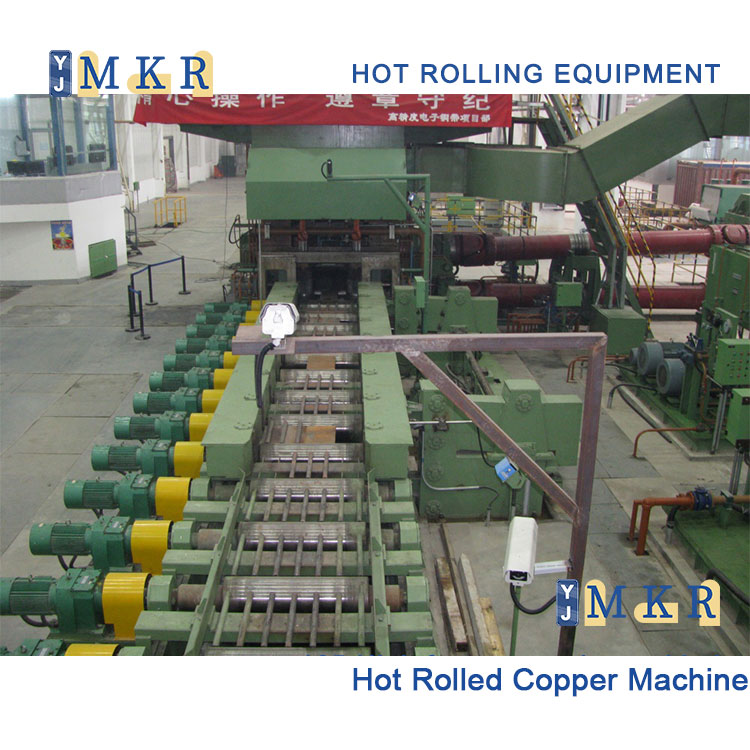

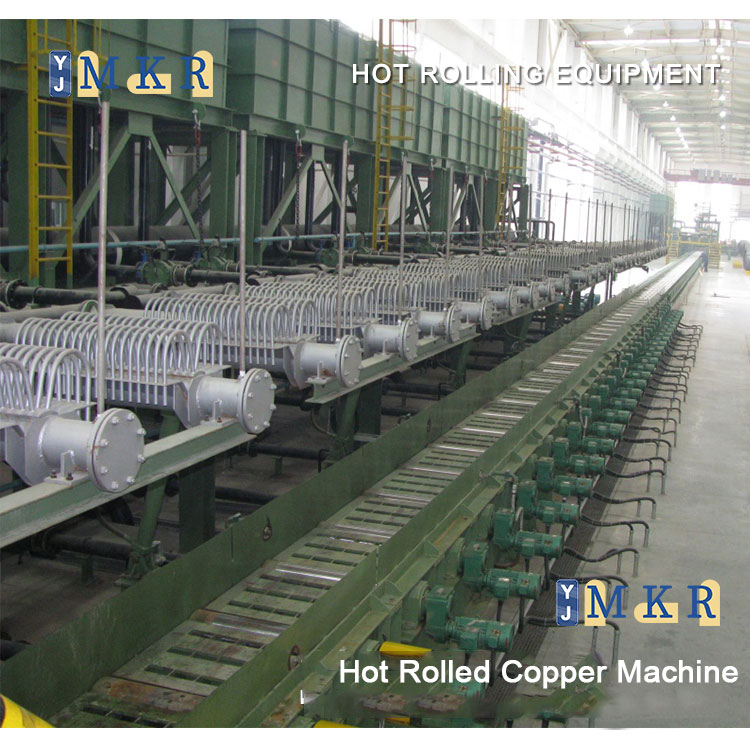

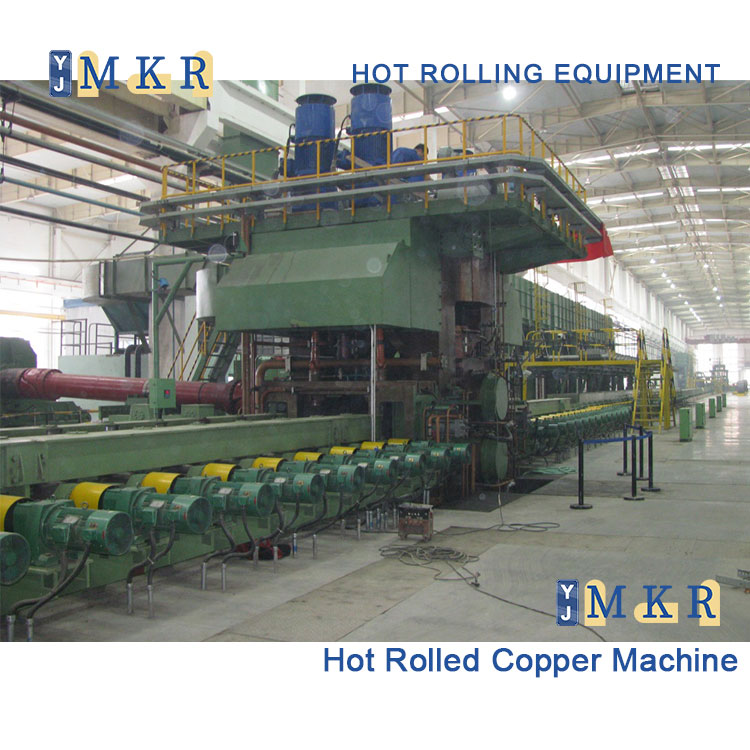

Hot rolled copper equipment is characterized by high efficiency, stability and precision. Firstly, its high efficiency is reflected in the high production efficiency and low energy consumption, which can meet the needs of large-scale production. Secondly, the equipment is highly stable, adopting advanced control system and automation technology to ensure the stability and reliability of the production process. In addition, the hot rolled copper equipment has the ability of accurate processing, which can realize the accurate processing and molding of copper materials to ensure product quality. In addition, the equipment also has intelligent characteristic. It can realize remote monitoring and intelligent management and improve production efficiency and safety. To sum up, hot rolled copper equipment has become one of the important equipment in copper material processing industry with its high efficiency, stability, precision and intelligent features.
