Details
Raw material information:
| 1 | Applicable material | Hot rolled strip steel, galvanized strip steel |
| 2 | Material grade | Low carbon steel, low alloy steel≤ 350Mpa |
| 3 | Inner diameter of strip steel | Ф508 mm |
| 4 | outer diameter of strip steel | ≤Ф2000 mm |
| 5 | Coil weight | ≤35 tons |
Finished product information :
| 1 | outer diameter of pipe | 250*250 mm ~ 500*500 mm |
| 2 | Thickness of pipe | 5.0 ~ 22.0 mm |
| 3 | Pipe length | 6m-12m |
| 4 | Production line speed | 30 m/min |

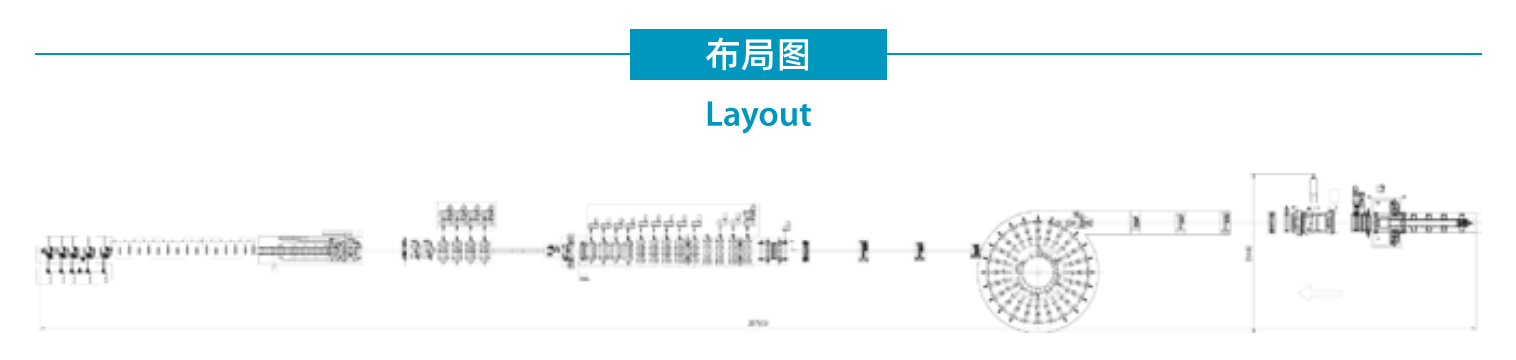

Technological process
· Loading
· Uncoil
· Pinching and straightening
· Butt welding
· Horizontal screw looper
· Rolling forming
· High frequency welding
· Scrapper
· Cooling
· Sizing and straightening
· Sawing
· Sischarge roller conveyor
· Packing
Product Description:

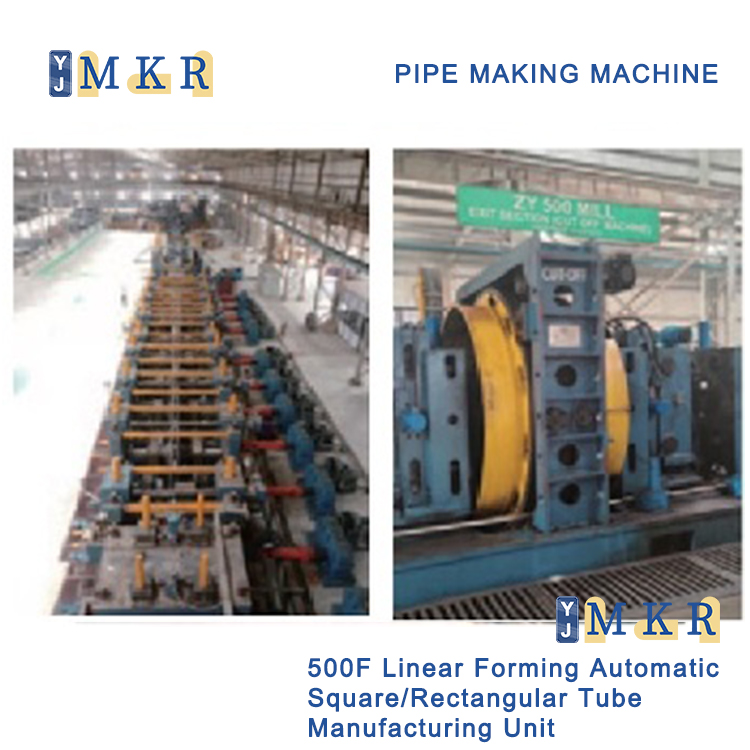

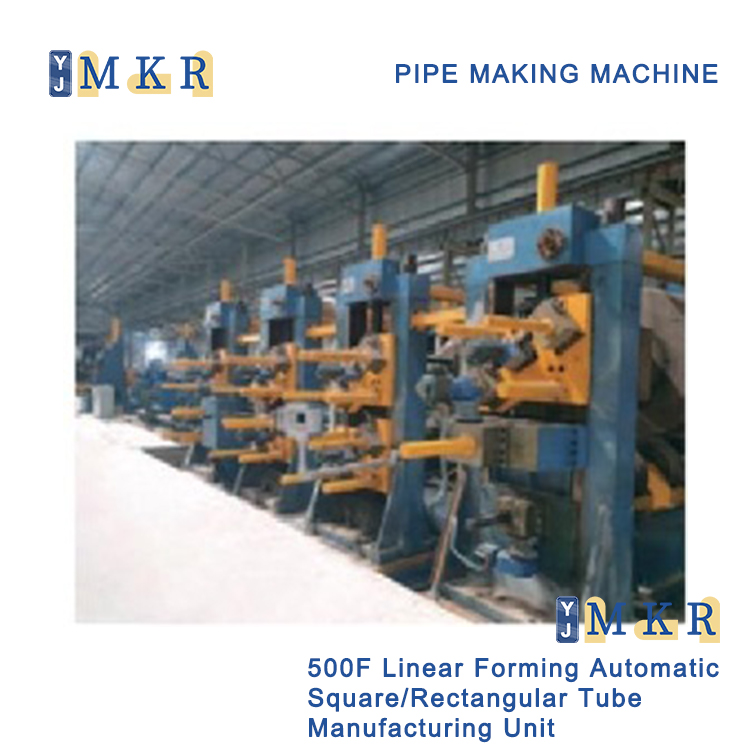

We are pleased to introduce to you our 500F linear forming automatic square/rectangular tube manufacturing unit. This manufacturing unit is suitable for hot rolled and galvanized steel strip. The material grades are mild steel and low alloy steel with tensile strength ≤ 350 Mpa. It is available for strips with an inner diameter of Ф508 mm, an outer diameter of ≤ Ф2000 mm and a coil weight of up to 35 tons.
The 500F linear forming automatic square/rectangular tube manufacturing unit is a highly efficient and accurate machine for producing square and rectangular tubes of various sizes. It utilizes advanced technology and automated control systems. It ensures a stable production process and high quality finished products. The machine has a high degree of automation. It is able to realize fast and accurate production, which greatly improves the production efficiency.
The 500F linear forming automatic square/rectangular tube manufacturing unit offers several advantages. First, it is highly adaptable to different materials and material grades of steel strip. Secondly, it has precise molding capabilities to produce high quality square and rectangular tubes. In addition, it has stable production performance and reliable operating system to ensure the safety and stability of the production process.
The 500F linear forming automatic square/rectangular tube manufacturing unit is ideal for your square and rectangular tube production. It not only meets your production needs, but also improves your productivity and product quality. If you are interested in our products, please feel free to contact us and we will be happy to serve you.
